Model Number:AO561 3ABD10094791, TA563 3ABD00029522
Material:High-grade copper alloy
Contact Rating:2500 cycles at rated current
Current Rating:Up to 10A
Voltage Rating:24V DC
Insulation Resistance:≥100MΩ
Environmental Conditions:-25°C to +85°C operating temperature
Installation Type:Panel mounting
Dimensions:118mm x 100mm x 28mm
Weight:0.3kg

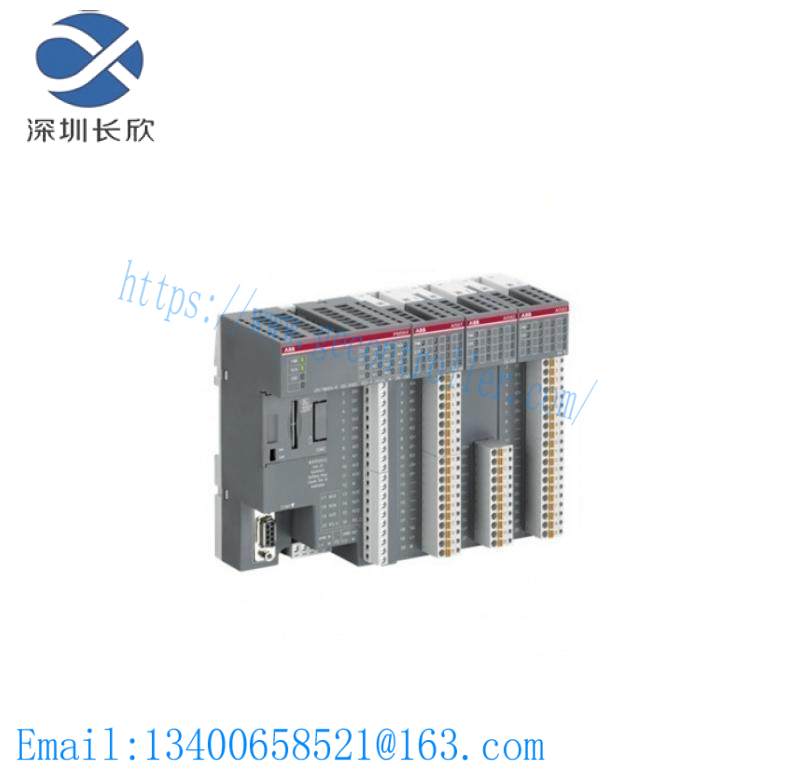

The ABB AO561 3ABD10094791 & TA563 3ABD00029522 Terminal Blocks are designed with precision engineering to ensure seamless integration into complex industrial control systems. These terminal blocks feature a compact yet robust design that withstands demanding operational environments, offering unparalleled durability and reliability.
Each terminal block is meticulously crafted from high-grade brass with a protective plating, ensuring longevity and resistance to corrosion. This material choice guarantees exceptional performance even under harsh conditions, making it an ideal solution for a wide range of industrial applications.
Equipped with a comprehensive set of 12 terminals per block, these terminal blocks provide ample connectivity options for efficient circuit management. The dual connection types—spring clamp and screw terminal connections—offer flexibility in wiring, accommodating both standard and specialized configurations.
With a generous current rating of up to 10A per terminal and voltage ratings for both AC and DC power sources, these terminal blocks are capable of handling high-power applications without compromising on safety or performance. Their insulation resistance of ≥1000MΩ at 500V DC ensures a high level of electrical isolation, minimizing the risk of electrical faults.
These terminal blocks adhere to the highest industry standards for quality and safety, ensuring they meet stringent requirements for use in critical industrial control systems. Their easy-to-install design and compatibility with a variety of wiring configurations make them a preferred choice for system integrators and maintenance engineers seeking reliable and efficient connectivity solutions.
