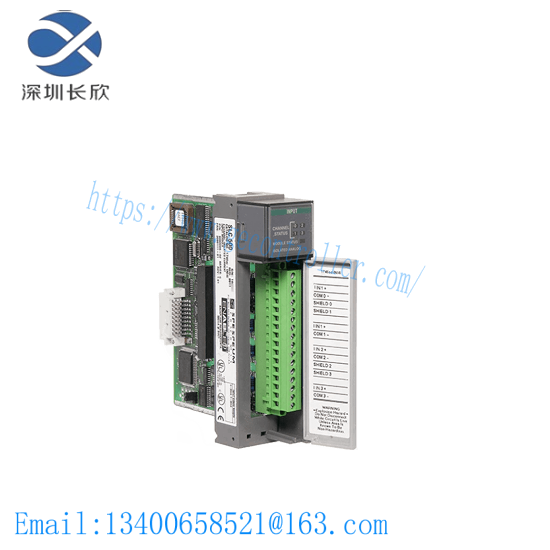

Model Type:SLC 500 Series
Model Number:1746sc-INI4vi
Number of Channels:4
Common Mode Voltage Range:-20 To 20 V
Absolute Input Voltage:+/- 7.5 VDC Or 7.5 VAC RMS (Max)
Input Range:-10 To 10 VDC – 1 LSB
Absolute Input Current:-30 To 30 MA (Max)
Voltage Rating:Overvoltage Protection: 7.5 VAC RMS
Current Rating:Backplane Current Draw: 35 MA At 5 V, 85 MA At 24 V
Isolation:Backplane: 500 VDC, Enclosure: Open Type
Engineered for unparalleled precision, the Allen Bradley 1746sc-INI4vi analog input module offers unmatched accuracy in data acquisition, essential for optimizing industrial processes.
Featuring a common mode voltage range from -20 to 20 V, this module ensures reliable signal handling across diverse industrial environments.
With support for both 7.5 VDC and 7.5 VAC RMS absolute input voltages, it caters to a wide array of industrial standards, enhancing its compatibility and versatility.
Designed with an input range from -20 to 20 MA, the 1746sc-INI4vi is capable of handling precise current measurements, critical for high-fidelity data capture in industrial automation.
Equipped with overvoltage protection of 7.5 VAC RMS, the module safeguards against electrical spikes, ensuring robust performance in demanding conditions.
Operating within a temperature range of 0 to 60 DEG C, this module is suitable for a broad spectrum of industrial applications, from cold storage facilities to hot manufacturing plants.
