Control Power Nominal:20 VA
Control Power Maximum:65 VA
Control Power Input Range:110 to 250 VDC, 100 to 240 VAC at 50/60 Hz
Dimensions:Approx. 12 in H x 5 in W x 8 in L
Ground Current Input Frequency:20 to 100 Hz
Insulation Class:Class I
Phase Current Input Conversion:True RMS, 1.04 ms/sample
Weight:Approx. 4.5 kg

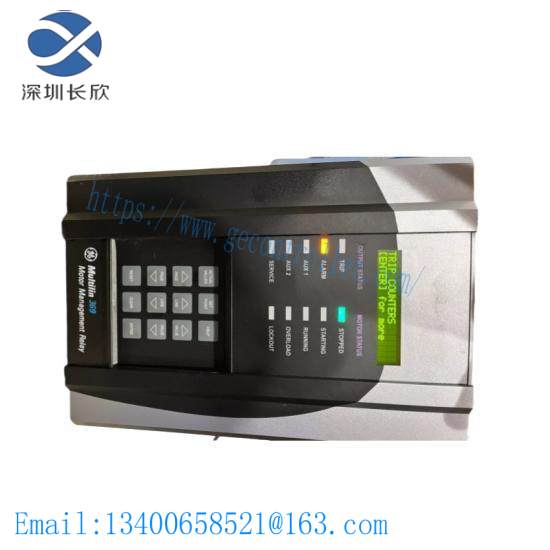

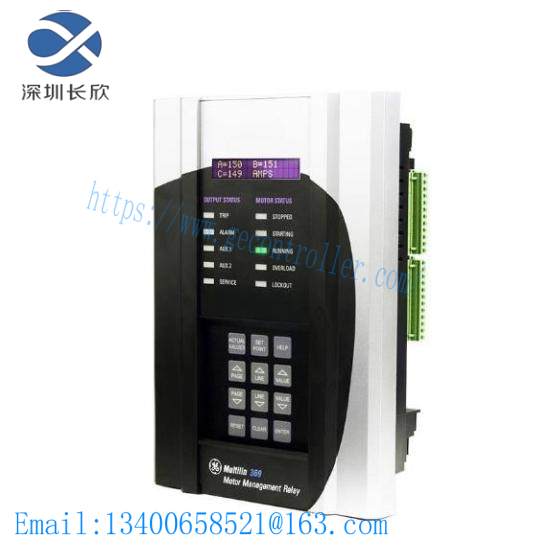

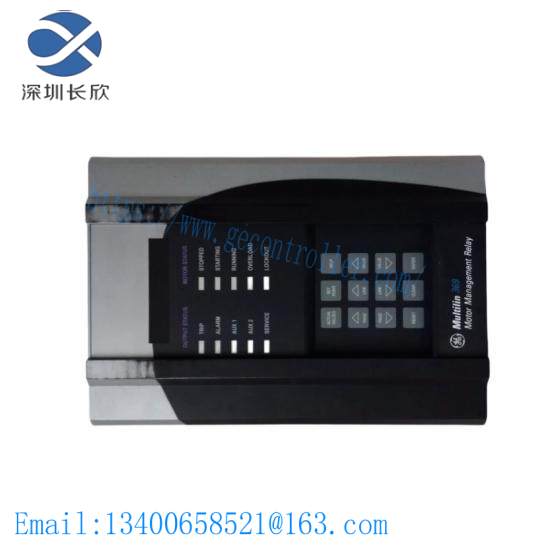

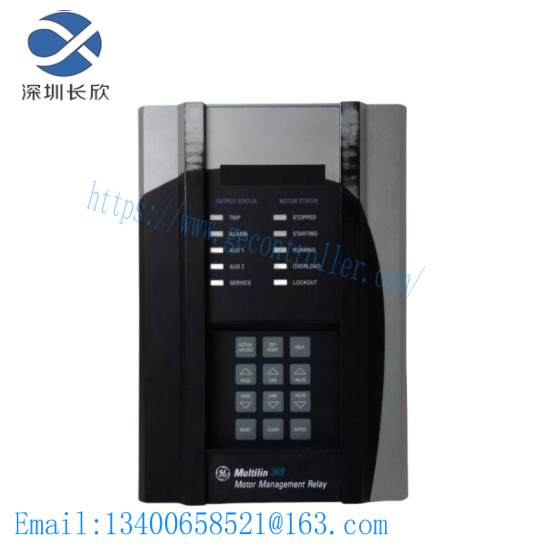

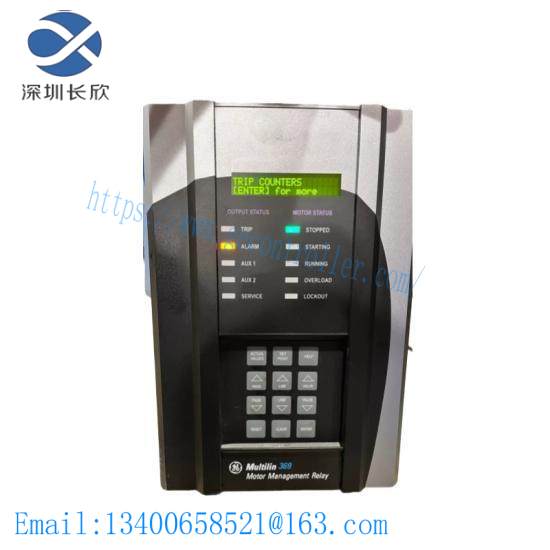

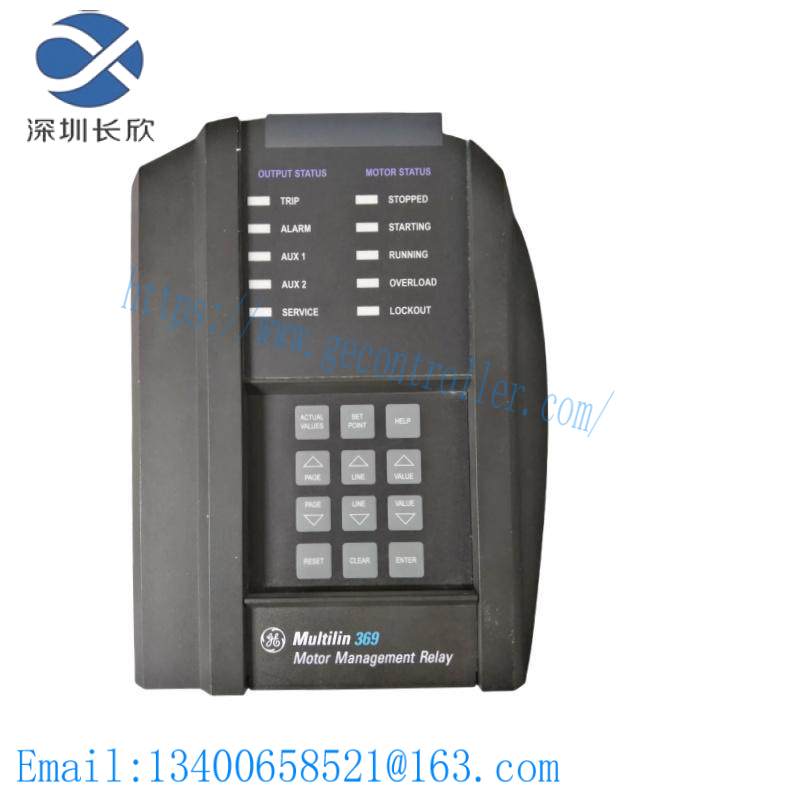

The GE 369-HI-R-M-0-0 is equipped with advanced metering capabilities, including waveform capture, event reporting, and data logging. These features help in reducing maintenance costs and minimizing downtime by providing real-time monitoring and analysis of motor performance.
Designed with robust insulation class I standards, the relay ensures safe and reliable operation under various environmental conditions. Its true RMS phase current input conversion ensures accurate measurements even during peak load conditions.
With dimensions of approximately 12 inches high, 5 inches wide, and 8 inches long, the compact design makes it ideal for installations where space is limited. The weight of approximately 4.5 kg ensures ease of installation without compromising on durability.
The control power range supports both DC and AC inputs, making it versatile for different power supply configurations. The relay can handle nominal power of up to 20 VA and a maximum of 65 VA, ensuring efficient operation in various industrial settings.
This model includes optional metering features, providing comprehensive insights into motor performance. The twelve RTD inputs allow for precise temperature monitoring of motors and associated equipment, further enhancing the overall reliability and longevity of the system.
