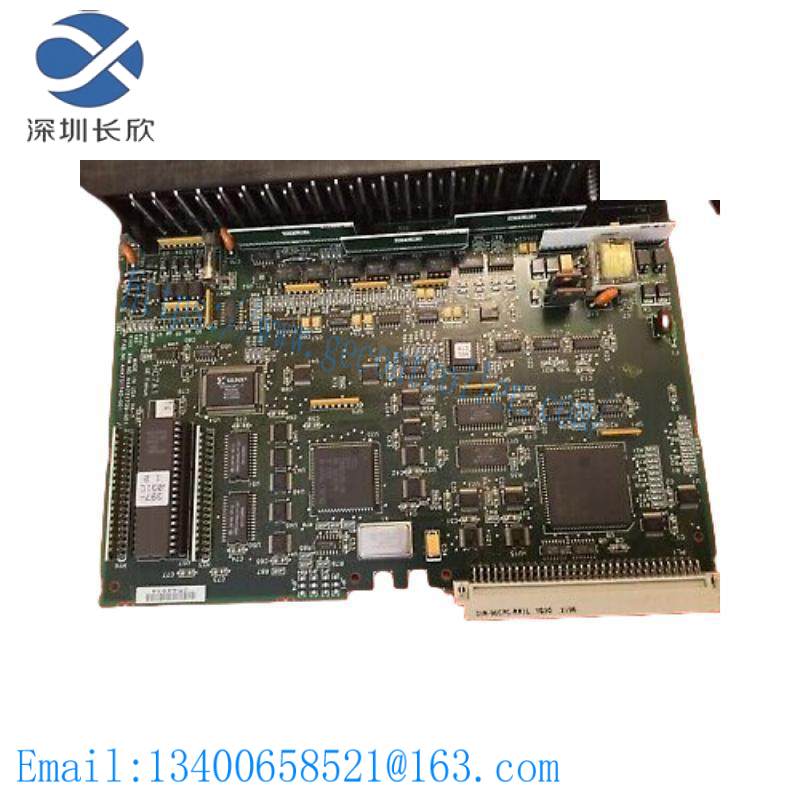

GE IC697HSC700 High Speed Counter – High Performance Counter Module for Industrial Control Systems

Model:IC697HSC700

Type:High Speed Counter Module

Operating Range:0 Hz to 1 MHz

Resolution:1 μs

Accuracy:±0.01% + 1 count

Input Signals:24V DC

Output Signals:24V DC, 2.5 mA max.

Communication Interface:RS-485 Modbus RTU

Operating Temperature:-20°C to +70°C

Storage Temperature:-40°C to +85°C

Dimensions:101.6 mm x 95.3 mm x 50.8 mm

Weight:145 g

    The GE IC697HSC700 High Speed Counter is a cornerstone in industrial automation, engineered to meet the stringent demands of high-speed timing and counting tasks across various manufacturing sectors. With its advanced microprocessor, it ensures unparalleled precision and reliability, making it an indispensable component for complex systems requiring accurate measurement of events at high speeds.

    This counter is capable of operating within a wide temperature range, from -20°C to +60°C, ensuring its robust performance under diverse environmental conditions. Its high counting rate of up to 1 MHz makes it ideal for applications where speed and efficiency are paramount.

    Precision is at the heart of the GE IC697HSC700, with an accuracy of +/- 1 microsecond, ensuring that every timing and counting operation is executed with utmost accuracy, minimizing errors in critical processes.

    The module’s power consumption of 4.5 W (typical) is optimized for efficient energy use, reducing operational costs without compromising on performance. It also features a communication interface compatible with RS-485, facilitating seamless integration with existing systems and enhancing data transfer rates.

    Designed for ease of installation, the GE IC697HSC700 is a panel mount module, allowing for compact and flexible placement in various control cabinets. This not only streamlines system design but also simplifies maintenance and troubleshooting, making it a preferred choice among engineers and technicians.
