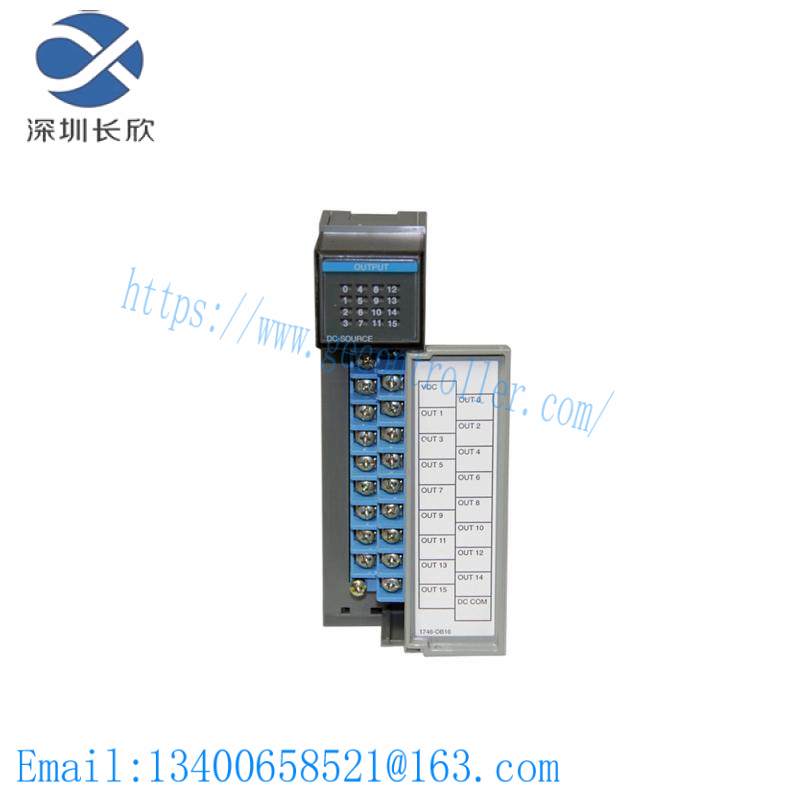

AB 1746-OB16 Digital I/O Module – Advanced Control Solutions

Model Number:1746-OB16

Manufacturer:Allen-Bradley

Module Type:Digital DC Output Module

Number of Channels:16

Input Voltage:24 VDC

Output Voltage Range:20.4-26.4VDC

On-State Voltage Drop:1.2 V

Off-State Output Leakage:1 MA

Load:1 MA

Current Rating:Continuous Current Per Output: 0.25 A at 60°C, Continuous Current Per Module: 4 A at 60°C

Isolation:Communication Circuits: 500 VDC, Backplane: 1500 VAC

Processor:SLC 500

Enclosure:Open Type

Mounting:Chassis

Temperature Rating:0 – 60°C

Environmental Conditions:5% – 95%

    Engineered for seamless integration into Allen-Bradley’s MicroLogix 1200 series, the AB 1746-OB16 Discrete Output Module offers precise control over industrial processes with its high-speed digital outputs.

    This module boasts a robust design capable of handling demanding industrial environments, ensuring reliable performance under varying conditions.

    Featuring 16 discrete outputs, it provides ample flexibility for configuring complex control systems, supporting a wide range of applications from simple logic control to more sophisticated automation tasks.

    With its open type enclosure, the AB 1746-OB16 allows for easy installation and maintenance, facilitating quick setup and minimizing downtime.

    Designed for optimal efficiency, this module optimizes power usage, reducing operational costs and enhancing overall system performance.
