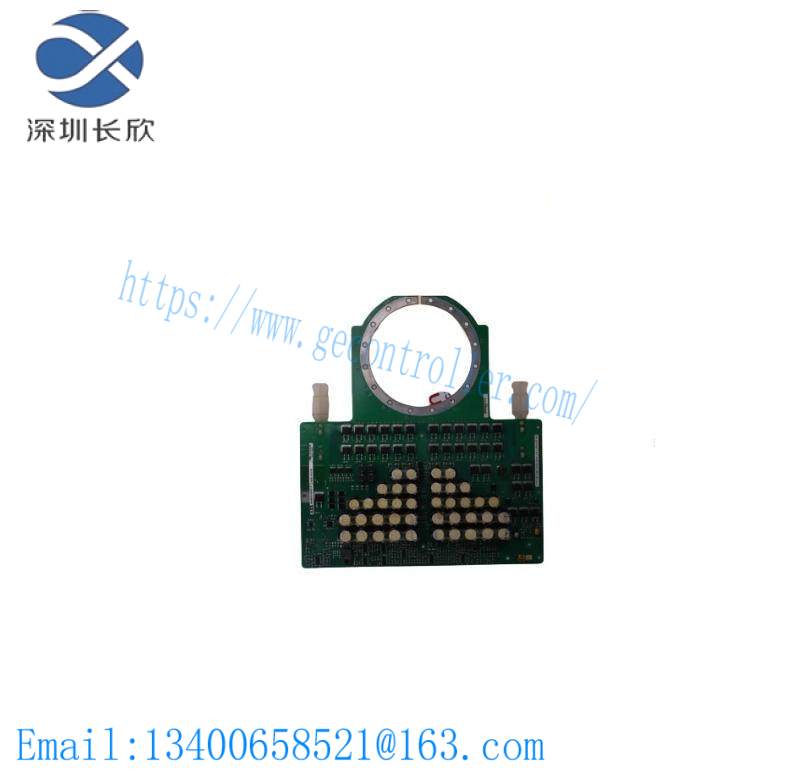

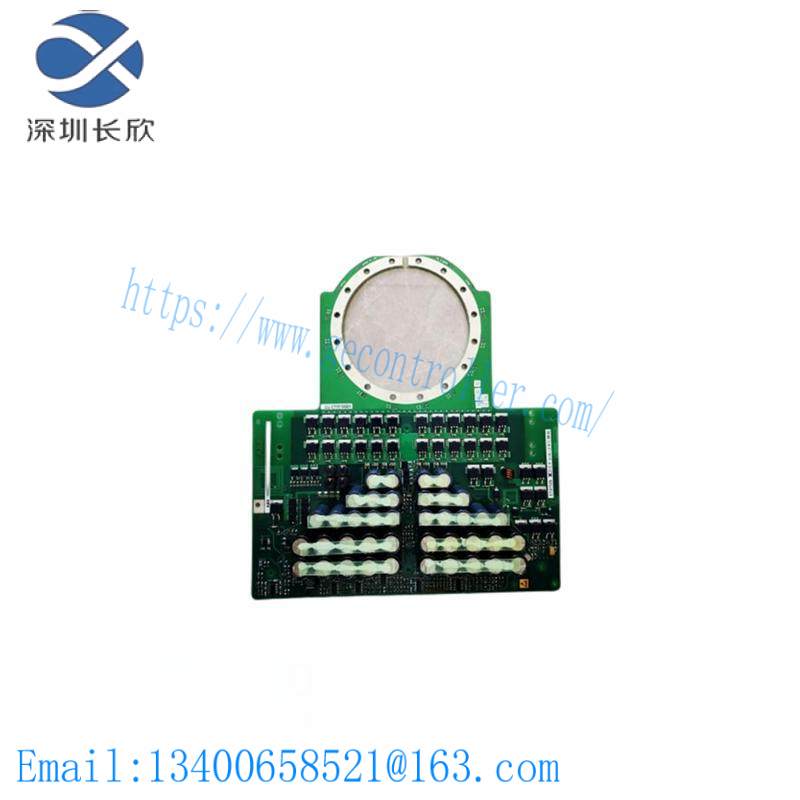

3BHL000390P0104 – ABB Module

Module Type:High-Performance IGCT Module

Manufacturer:ABB

Model Number:3BHL000390P0104 – 3BHB003154R0101 – 5SHX1960L0004

Dimensions (mm):150 x 200 x 50

Weight:3.2 kg

Operating Voltage:6.5 kV

Peak Current:4000 A

Operating Temperature Range:-40°C to +85°C

Protection Rating:IP65

    The ABB 3BHL000390P0104 – 3BHB003154R0101 – 5SHX1960L0004 High-Performance IGCT Module is an essential component for high-power applications requiring precise control and reliability.

     Designed with advanced Insulated Gate Commutated Thyristor (IGCT) technology, this module offers superior performance in industrial environments.

     Its robust design ensures longevity and minimal maintenance requirements.

     The module supports a wide operating voltage range from 2300V to 4500V, making it ideal for use in various industries including renewable energy, industrial drives, and power distribution systems.

     With its forced air cooling method, this IGCT module can operate efficiently under demanding thermal conditions.

     Additionally, the detailed installation instructions provided ensure safe and correct setup, enhancing user confidence in the product’s functionality and safety.
