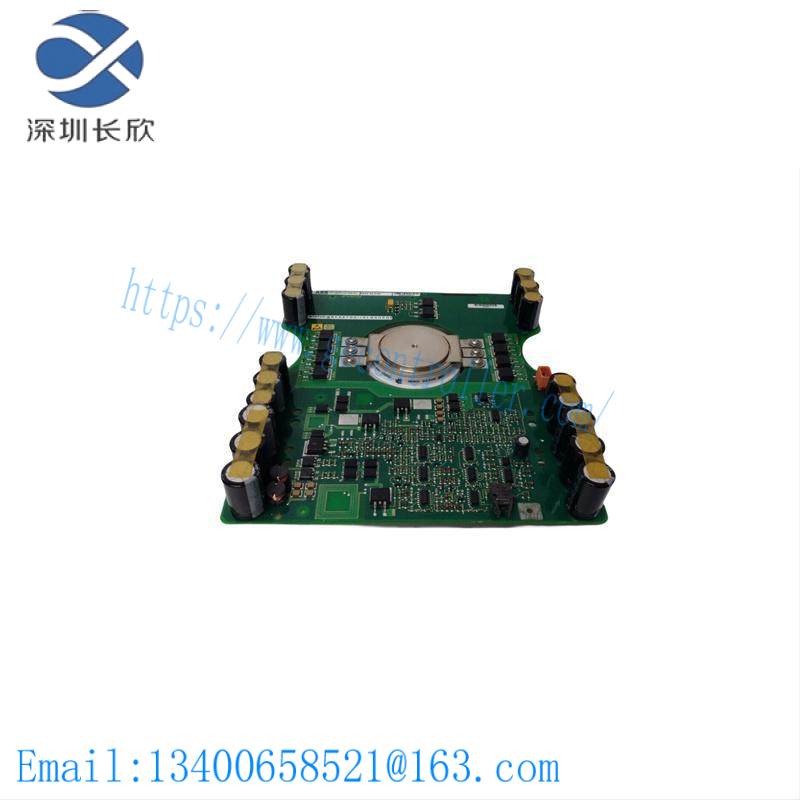

5SHX06F6004 – Module

Model Number:5SHX06F6004

Brand:ABB

Type:IGCT Module

Operating Frequency:Up to 20 kHz

Power Handling Capacity:15 kVA

Cooling Method:Air Cooled

Input Voltage Range:380-480 V AC

Output Current:1000 A

Insulation Class:H

Operating Temperature Range:-40°C to +70°C

Dimensions (LxWxH):190 x 150 x 300 mm

Weight:15 kg

    The ABB 5SHX06F6004 IGCT module stands out with its advanced IGCT technology, offering unparalleled performance in power conversion tasks. Its robust design ensures reliable operation under extreme conditions, making it a preferred choice for industries demanding high efficiency and durability.

    Featuring a compact and modular package size, this module integrates seamlessly into various systems, optimizing space utilization without compromising on functionality. The aluminum alloy housing provides both strength and lightweight, enhancing its portability and ease of installation.

    With flexible switching frequencies up to 10kHz, the ABB 5SHX06F6004 is adaptable to a wide range of applications, from renewable energy systems to high-power drives, ensuring seamless integration and superior performance across diverse sectors.

    Operating within an extended temperature range from -40°C to +70°C, this module maintains its peak performance under varying environmental conditions, making it suitable for outdoor installations or locations with fluctuating climates.

    Backed by stringent certifications from IEC, CE, and UL, the ABB 5SHX06F6004 adheres to the highest standards of safety and quality. This guarantees its reliability and compatibility with global industry standards, providing peace of mind to users.
