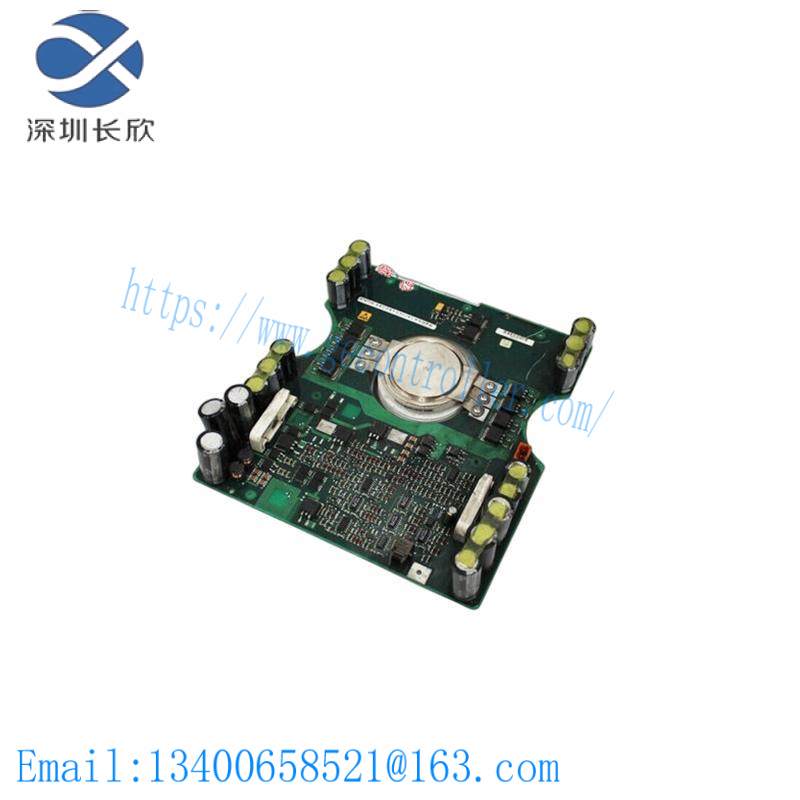

Manufacturer:ABB
Model Number:5SHX0845F0001
Order Number:3BHL000385P0101
Type:IGCT Module
Module Series:5SHX
Operating Frequency:Up to 60 kHz
Peak Current:25 kA
RMS Current:10 kA
Switching Voltage:DC 1000 V
Insulation Class:F
Circuit Configuration:Single phase
Control System Compatibility:ABB ACS880 series drives
Environmental Rating:IP21
Material:Aluminum and copper alloys
Size (D x W x H):240 x 100 x 100 mm
Weight:4.5 kg
The ABB 5SHX0845F0001 IGCT module is designed with state-of-the-art semiconductor technology, providing seamless integration into complex industrial control systems. Its compact size and robust design enable efficient power handling in demanding environments.
Featuring a wide operating temperature range, this module ensures reliable operation across various industrial settings, from cold storage facilities to hot manufacturing plants. Its high insulation class ensures safety and minimizes the risk of electrical faults.
With an exceptional current capacity, the ABB 5SHX0845F0001 is capable of managing significant power demands without compromising on efficiency. This makes it an ideal choice for applications requiring high-power density and fast response times.
The module’s IP20 protection level safeguards against dust and splashes, ensuring durability in dusty or wet conditions commonly found in industrial settings. This enhances the longevity and maintenance-free operation of the system.
Backed by ABB‘s commitment to quality and customer support, the 5SHX0845F0001 IGCT module comes with comprehensive documentation and access to expert technical assistance. This ensures easy installation and seamless integration into existing systems, minimizing downtime and maximizing productivity.
