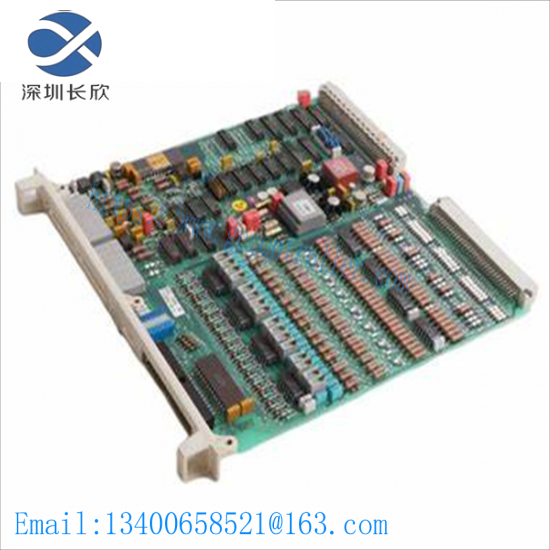

57120001 – Board

Product Type:Analog Input Board

Model Number:DSAI130H 57120001-NT

Channels:16

Sampling Rate:Up to 1000 samples per second

Accuracy:+/- 0.1% of full scale

Operating Temperature:-25°C to +60°C

Dimensions (WxHxD):236.7mm x 14.4mm x 327.6mm

Weight:0.52kg

Communication Protocol:Modbus RTU

Power Consumption:1.2W (max)

    The ABB DSAI130H 57120001-NT Analog Input Board is engineered to provide unparalleled reliability and accuracy in industrial automation environments. Its 16-channel design ensures efficient data processing, critical for the seamless operation of modern manufacturing lines.

    Featuring a compact yet durable design, this board seamlessly integrates into existing control systems without compromising on performance. Its compatibility with RS-485 Modbus communication protocol ensures smooth data exchange with other system components.

    With a wide operating temperature range from -20°C to +55°C, the ABB DSAI130H can withstand harsh industrial conditions, ensuring consistent performance throughout the year. The non-condensing humidity range of 5% to 95% further enhances its durability in varied environmental settings.

    The power supply capability of DC 24V supports a broad range of industrial devices, making it a versatile choice for diverse automation applications. Whether you’re dealing with precise measurements or monitoring processes, the ABB DSAI130H delivers the reliability you need.

    For ease of use and integration, the ABB DSAI130H comes equipped with a straightforward installation process and comprehensive documentation. Its user-friendly interface facilitates quick setup and configuration, allowing operators to focus on optimizing production processes rather than troubleshooting hardware issues.
