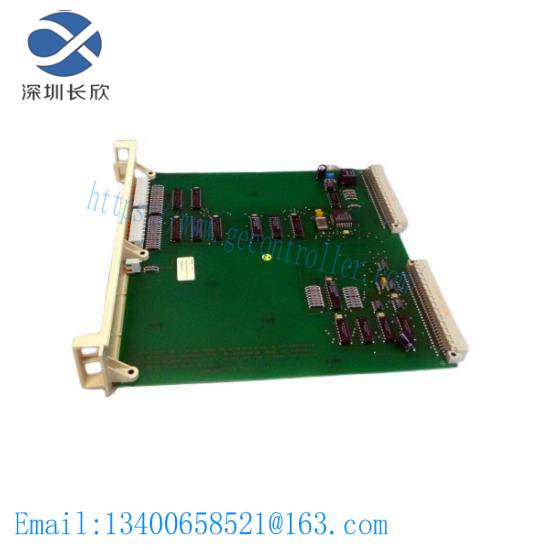

ABB – ABB Module

Product Type:Robotic Remote I/O Module

Manufacturer:ABB

Model:DSQC239

Serial Number:YB560103-CH

Dimensions (W x H x D):85mm x 100mm x 32mm

Weight:120g

Operating Voltage Range:24V DC

Current Rating:1A

Number of Inputs:16

Number of Outputs:16

Communication Interface:EtherCAT

Environmental Temperature Range:-20°C to +60°C

Humidity Range:5% to 95% RH without condensation

IP Protection Class:IP20

    Precision-engineered for robotic applications, the ABB DSQC239 YB560103-CH module is designed to deliver unparalleled performance in industrial automation environments.

    With its compact PCB mounting design, the module efficiently utilizes space on the control panel or machine frame, enhancing operational flexibility and compactness.

    Equipped with DeviceNet communication interface, this module ensures robust and reliable data exchange between the robot controller and various peripherals, streamlining the integration process and enhancing productivity.

    Featuring 8 inputs and 8 outputs, the DSQC239 YB560103-CH offers a versatile solution for controlling and monitoring multiple devices simultaneously, catering to diverse industrial needs.

    Operated at a stable DC 24 V voltage, the module ensures consistent performance across a wide range of temperatures from -25°C to +60°C, making it suitable for harsh industrial environments.

    The module’s IP20 rating signifies protection against incidental contact with moving parts and dust ingress, safeguarding the internal components and ensuring longevity and reliability in manufacturing floors.
