Brand:ABB
Model:EI813F 3BDH000022R2
Type:Ethernet Module
Connection:RJ45
Data Rate:10/100 Mbps
Power Consumption:Max. 3.5W
Operating Temperature:-20°C to +55°C
Operating Humidity:5% to 95% non-condensing
Dimensions (WxHxD):50mm x 50mm x 28mm
Material:Industrial-grade plastic
Mounting:Panel mounting
Compliance:CE, UL, FCC Class B

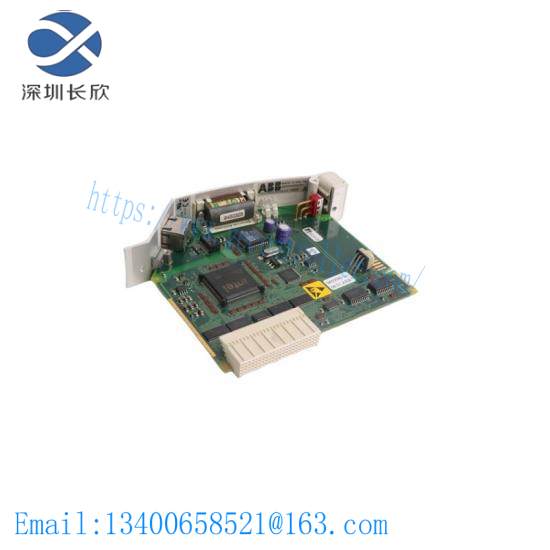

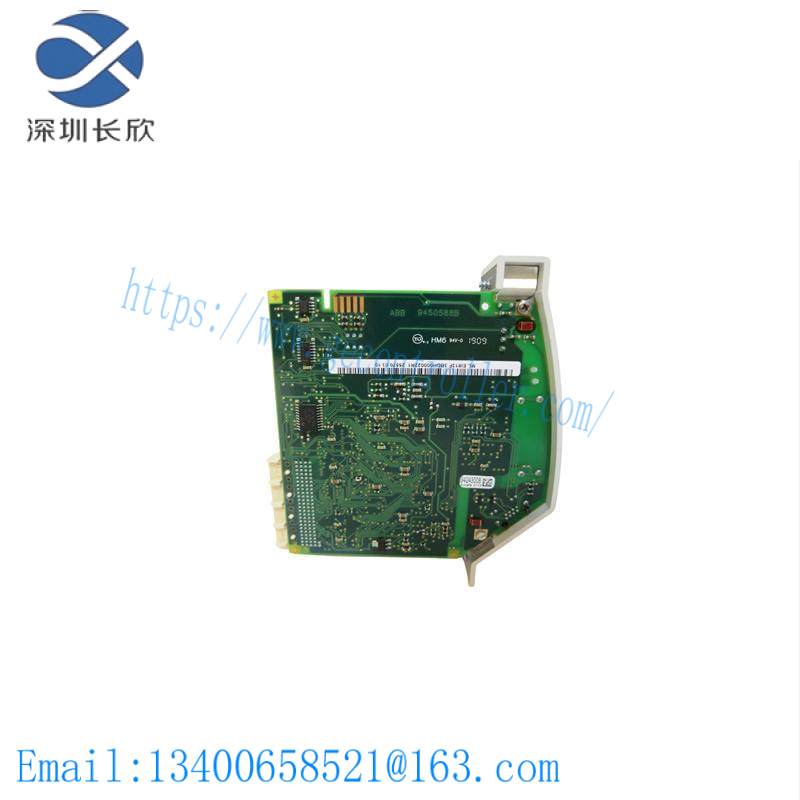

The ABB EI813F 3BDH000022R2 Ethernet Module is a critical component in modern industrial automation systems, designed to enhance network connectivity and performance. This module supports the IEEE 802.3 standard, ensuring compatibility and reliability across various industrial networks.
Featuring a data rate of up to 10/100 Mbps, it enables fast and efficient data transfer, crucial for real-time operations in manufacturing processes. Its robust design includes a durable RJ45 connector for secure and reliable connections to other network devices.
Operating within a temperature range of -20°C to +60°C, this module is engineered to withstand harsh industrial conditions, making it suitable for a wide array of applications from assembly lines to process control systems.
With an electrical rating of Class II, Category 3, the module adheres to stringent safety standards, ensuring protection against electrical hazards and reducing the risk of system failures. Its IP20 enclosure type provides basic dust protection, safeguarding internal components from external contaminants.
The compact dimensions (65mm x 56mm x 24mm) and lightweight design (0.02kg) make installation straightforward, especially when space is at a premium. The panel mounting option allows for flexible integration into existing setups without requiring extensive modifications.
