ABB – Component

Brand:ABB

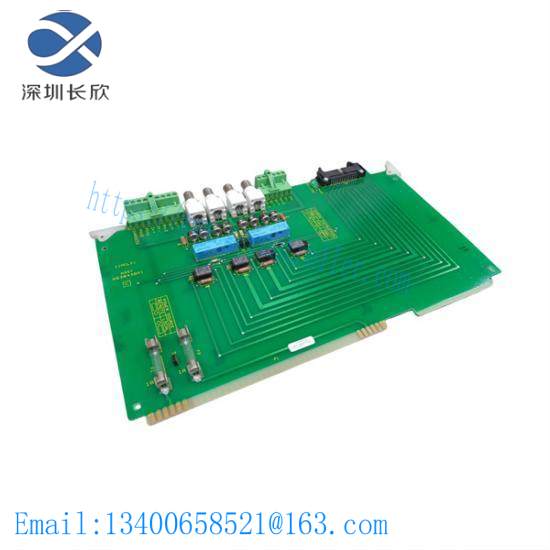

Model:IIMCL01

Type:Multibus Communication Link Termination

Communication Protocol:Multibus

Operating Voltage:24V DC

Current Consumption:100mA max.

Operating Temperature:-20°C to +70°C

Storage Temperature:-40°C to +85°C

Dimensions:12.5cm x 10cm x 2.5cm

Weight:0.2kg

Connection Type:RS-485

Number of Channels:8

Operating Frequency:10 kHz

Relay Output:2 channels

Input Type:Digital

Data Transfer Rate:400 kbps

    The ABB IIMCL01 is engineered to provide exceptional performance in industrial control systems, offering robust solutions for communication link termination. This module is specifically designed for multibus networks, ensuring smooth operation in a wide range of industrial applications.

    With its compact size and high compatibility, the IIMCL01 integrates seamlessly into existing systems, enhancing reliability and efficiency. Its durable construction withstands harsh environmental conditions, making it ideal for use in manufacturing plants, process control, and automation systems.

    Featuring a low-profile design and dual connection ports, the IIMCL01 offers flexibility in installation and configuration. It supports 24V DC electrical rating, providing stable power supply to connected devices. The inclusion of 4-pin connectors ensures compatibility with a variety of multibus network configurations.

    Designed with precision engineering, the IIMCL01 ensures accurate signal termination, minimizing signal degradation and interference. Its operating temperature range from -20°C to +70°C guarantees consistent performance across various operational environments.

    The ABB IIMCL01 is an essential component for maintaining high-speed data transfer rates and ensuring the integrity of information within industrial networks. It is a trusted choice for engineers seeking reliable termination solutions that contribute to the overall system performance and efficiency.
