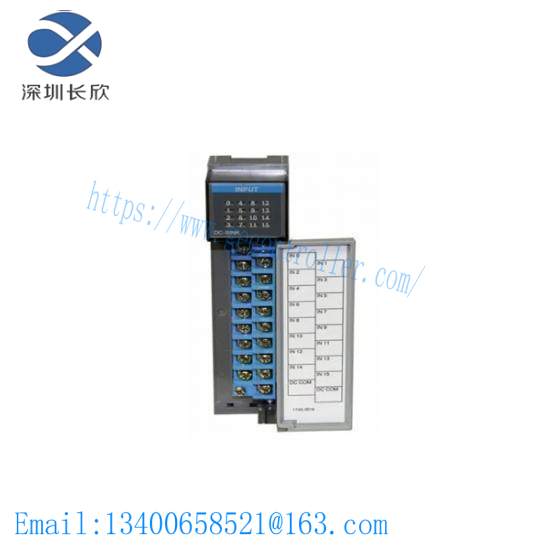

IN16 – Module

Model Type:SLC500

Model Number:1746-IN16

Manufacturer:Allen Bradley

Input Type:Digital AC Input

Number of Channels:16

Input Voltage Range:24 VAC/DC Signal, 10 – 30 VAC, 10 – 30 VDC (Sink)

Off-State Input Voltage:3 VAC/VDC

Nominal Current:8 MA at 24 VAC/VDC

Off-State Current:1 MA

AC/DC Current Rating:Backplane: 85 MA

Isolation Levels:Communication Circuits: 500 VDC, Backplane: 1500 VAC

Processor:SLC 500

Enclosure Type:Open Type

Mounting:Chassis

Temperature Rating:0 – 60 DEG C

Environmental Conditions:5 – 95% Non-Condensing Relative Humidity

Shock Resistance:30 G

    Experience seamless integration with Allen Bradley‘s renowned SLC500 system, where the 1746-IN16 module serves as a critical component for robust signal acquisition.

    Equipped with 16 digital AC input channels, this module ensures high precision and reliability in various industrial settings.

    Optimized for a wide range of signal types including 24 VAC/DC, 10 – 30 VAC, and 10 – 30 VDC signals, it offers versatility suitable for diverse applications.

    Designed with advanced isolation techniques, the 1746-IN16 ensures minimal interference and enhanced safety across communication circuits and backplanes.

    Featuring an open-type enclosure and chassis mounting capability, this module is adaptable to a variety of installation scenarios, ensuring easy integration into existing systems.
