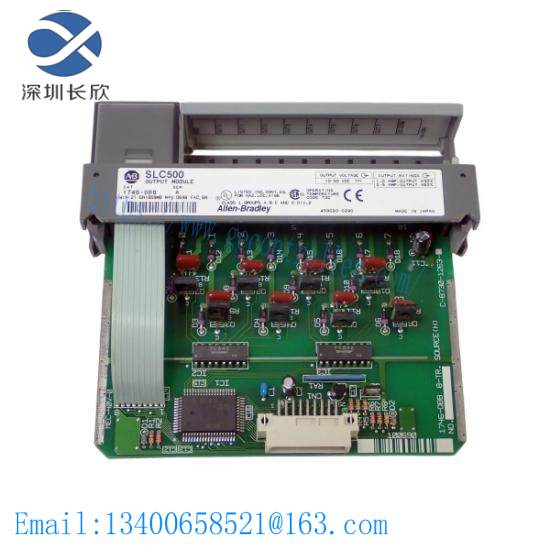

ID30062 – Industrial Part

Order Number:1746-OB8

Brand:AB

Model:1746-OB8

Number of Channels:8

Output Configuration:Common Anode/Source

Operating Voltage:24VDC

Current Rating:50mA per channel

Relay Contacts:SPST

Contact Rating:500VAC, 2A

Insulation Resistance:≥ 1000MΩ

Operating Temperature:-5 to +55°C

Humidity Range:5% to 95% RH non-condensing

    Engineered for unparalleled precision and reliability, the Allen Bradley 1746-OB8 Output Module for SLC 500 is designed to meet the demands of the most rigorous industrial environments. Its compact size and robust construction ensure seamless integration into any existing system.

    With 8 digital DC output channels, this module provides the flexibility needed for various control applications, from machine automation to process control systems. The high-resolution outputs ensure accurate signal transmission, critical for achieving optimal operational efficiency.

    Featuring a wide voltage range of 5 to 50 VDC, the 1746-OB8 can accommodate a diverse array of devices and applications, offering unparalleled versatility. The low on-state voltage drop ensures minimal power consumption and efficient operation.

    The 1746-OB8 boasts an impressive current rating, providing sufficient power for high-load applications without compromising on system stability. Its isolation features, including 500 VDC communication circuits and 1500 VAC backplane isolation, guarantee reliable signal transmission even under harsh environmental conditions.

    With its open-type enclosure and chassis mounting option, the Allen Bradley 1746-OB8 Output Module fits seamlessly into various industrial setups, enhancing system scalability and adaptability. The unit operates within a temperature range of 0 to 60 DEG C, ensuring reliable performance in a wide variety of industrial climates.
