Model Type:Bridge Module

Manufacturer:Allen Bradley

Model Number:1756-EN2T/A

Communication Protocol:Ethernet/IP Bridge

Enclosure:Open Type

Connection Cables:802.3 Compliant Shielded Or Unshielded Twisted Pair

Temperature Rating:0 – 60 DEG C

Power Dissipation:5.1 W

Isolation:30 V Continuous

Environmental Conditions:5 – 95% Non-Condensing Relative Humidity

Vibration:2 G

Shock:30 G

Interface:Ethernet

USB Port:Not applicable

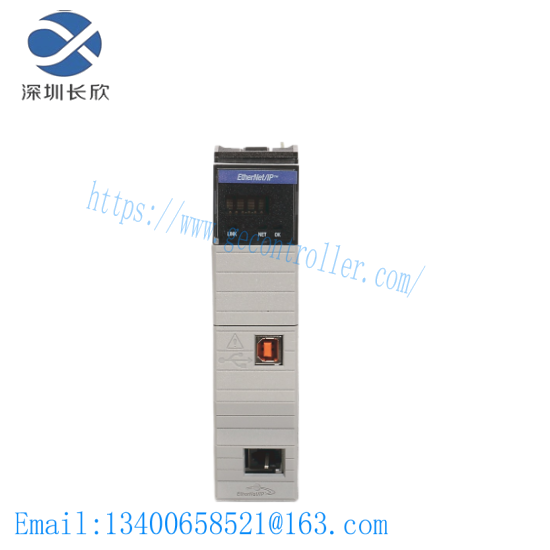

    This ControlLogix Ethernet/IP Bridge Module by Allen Bradley is designed for high capacity and reliability in industrial automation environments. It facilitates seamless communication between ControlLogix systems and Ethernet/IP networks, enhancing productivity and operational efficiency.

    Featuring an open-type enclosure, this module is built for robust performance across a wide range of industrial conditions. Its temperature rating ensures stable operation in diverse climates, making it suitable for various applications from cold warehouses to hot manufacturing floors.

    The 1756-EN2T/A module supports a power dissipation of 5.1 W, ensuring efficient power management without overheating. With continuous isolation of 30 V, it guarantees high levels of electrical safety and system integrity.

    Equipped with 802.3 compliant shielded or unshielded twisted pair connection cables, the module ensures reliable data transmission even in environments prone to interference. This feature is particularly beneficial in industries where signal integrity is critical.

    Designed for compatibility with ControlLogix systems, this Ethernet/IP Bridge Module from Allen Bradley offers a straightforward integration solution, allowing for easy setup and maintenance. Its compact size and durable build make it a valuable addition to any industrial automation project.
