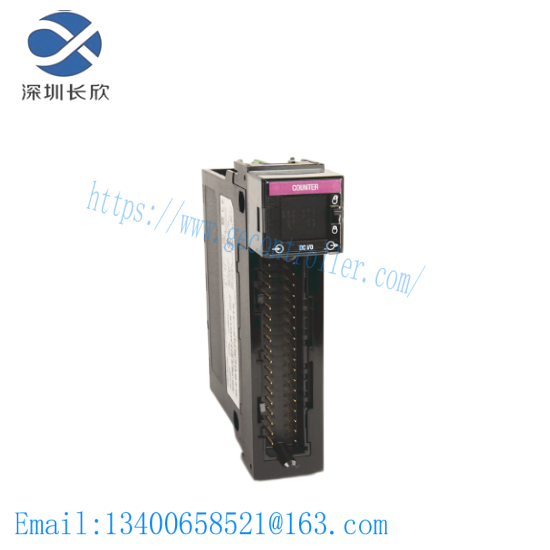

Allen Bradley – Module

Manufacturer:Allen Bradley

Model Number:1756-HSC

Type:High Speed Counter Module

Communication Interface:ControlLogix Communication Module

Power Supply:3 MA at 24 VDC

Mounting:Chassis

Communication Speed:10/100 MBPS

Communication Protocol:Ethernet/IP Bridge

Enclosure Type:Open Type

Connection Cables:802.3 Compliant Shielded or Unshielded Twisted Pair

Temperature Range:0 – 60 DEG C

Power Dissipation:5.1 W

Isolation Level:30 V Continuous

Environmental Conditions:5 – 95% Non-Condensing Relative Humidity

Vibration Resistance:2 G

Shock Resistance:30 G

Interface:Ethernet

USB Port:Not Provided

    The AB 1756-HSC High Speed Counter Module is engineered for demanding industrial environments, featuring robust construction to withstand harsh conditions without compromising performance.

    Equipped with a high-speed sampling rate, this module ensures accurate and reliable counting even under rapid motion or high-frequency scenarios, making it ideal for applications requiring precise measurement of shaft rotations or linear movements.

    With two dedicated counting channels, the module offers flexibility for various applications, allowing simultaneous counting on different inputs or independent operation for each channel.

    Featuring a DeviceNet communication interface, the 1756-HSC facilitates seamless integration into a wide range of automation systems, enhancing system efficiency and connectivity.

    Designed for panel mounting, this module offers a compact solution that can be easily integrated into existing control panels, minimizing installation complexity and maximizing space utilization.
