Allen-Bradley – Controller

Processor:CompactLogix 5370 L2 Ethernet Processor Module

Memory:750KB

USB Ports:1

Ethernet/IP Ports:2

Digital Inputs:(16) 24V DC

Digital Outputs:(16) 24V DC

Analog Inputs:(4) Voltage/Current

Analog Outputs:(2) Voltage/Current

High-Speed Counters:4

I/O Expansion:Up to 4 1769 I/O Expansion Modules

Ethernet/IP Nodes:Up to 120

Motion Control:24V DC Power Supply with 1GB SD card, expandable to 2GB

Network Compatibility:Supports EtherNet/IP, Device Level Ring

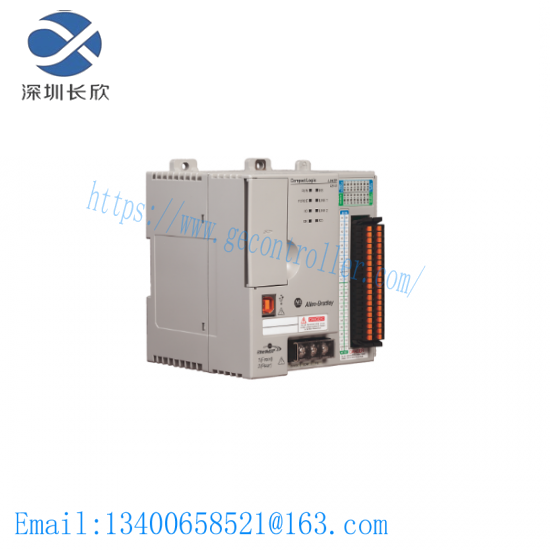

    The Allen-Bradley 1769-L24ER-QBFC1B is engineered to meet the demands of complex industrial automation environments, providing seamless connectivity with other networked devices and systems.

    With its 2 Ethernet ports and 1 RS232 interface, the controller enables rapid data exchange, crucial for real-time control and monitoring processes in food processing, petrochemical, pulp and paper, automobile manufacturing, water and wastewater, oil and gas, and power sectors.

    Featuring 512 KB of user memory, the controller supports extensive programming and customization, allowing for sophisticated logic and algorithm development tailored to specific industrial needs.

    This Ethernet controller supports up to 24 I/O modules, offering flexible input/output configurations to match diverse system requirements, and it can be conveniently mounted using DIN Rail or Panel Mounting options.

    Equipped with a rugged design and capable of operating within a wide temperature range (-25°C to 60°C), the 1769-L24ER-QBFC1B ensures reliable performance in harsh industrial conditions, backed by Allen-Bradley’s commitment to quality and durability.
