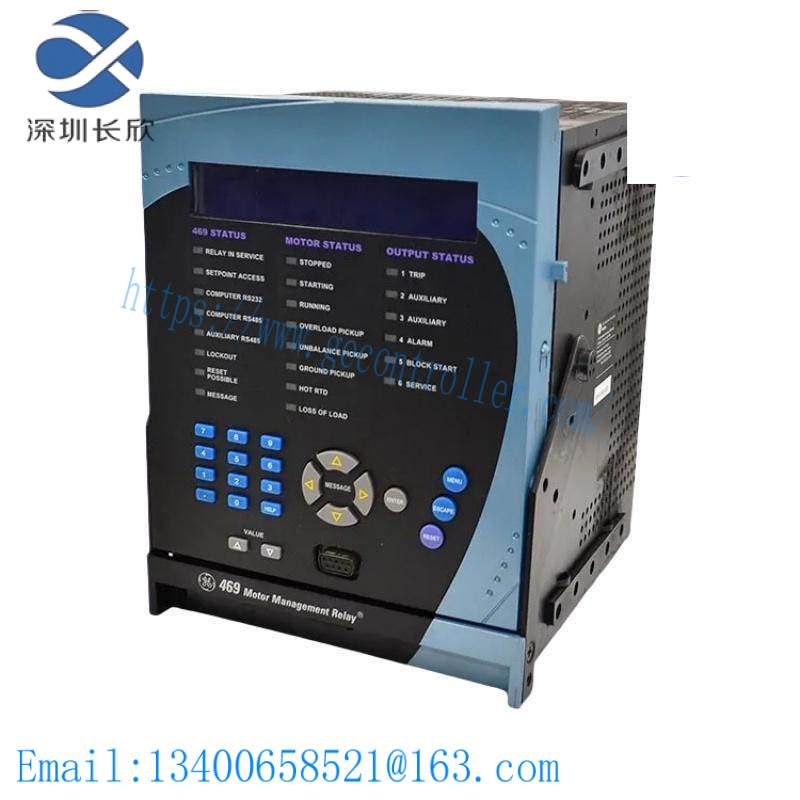

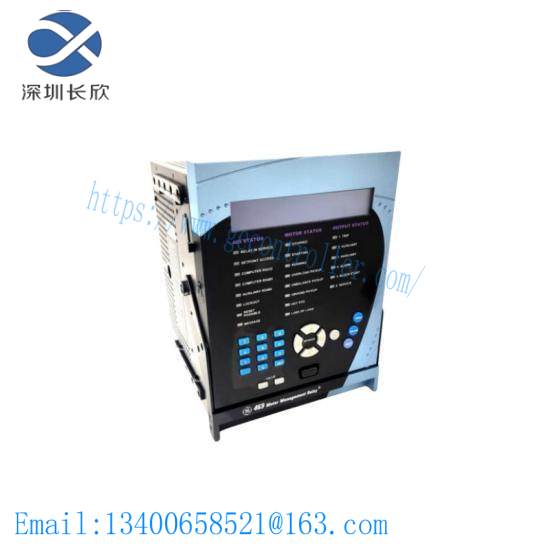

GE 469-P5-HI-A20-E Motor Management Relay – Advanced Motor Protection and Control

Model Number:469-P5-HI-A20-E

Brand:GE Multilin

Voltage Range:90 – 300 Volt DC, 70 – 265 Volt AC

Current Rating:4 Analog Output, Enhanced Front Panel CURRENT: 390/500 MA (MAX)

CT Rating:5 CT Secondaries

Frequency Range:48-62 Hz

Phase CT:5A

Overvoltage Category:II

Insulation Voltage:300 V

Pollution Degree:2

Analog Outputs:4 (0 to 1 mA)

Digital Inputs:9 opto-isolated inputs

Display:Enhanced display, larger LCD

Operating Temperature:-40°C to +60°C

Storage Temperature:-40°C to +80°C

Enclosure Rating:20-X

Software:EnerVista 469 Setup

    The GE 469-P5-HI-A20-E is an advanced Motor Protection Relay designed for industrial applications where reliable motor management is critical. With its robust design and multiple RTD inputs, it can accurately monitor the temperature and hottest points of motor systems, ensuring optimal performance and protection. Its enhanced front panel provides intuitive controls, making it user-friendly for operators. The relay supports a wide voltage range and multiple current ratings, making it versatile for various motor sizes. With conformal coating for harsh environments, this relay is built to withstand challenging industrial conditions. The 469-P5-HI-A20-E is equipped with four analog outputs and nine opto-isolated digital inputs, providing comprehensive data monitoring capabilities. Its larger LCD display offers clear visibility of operational parameters, enhancing ease of use and maintenance. Designed with pollution degree 2 and overvoltage category II standards, this relay ensures safety and reliability in industrial settings.
