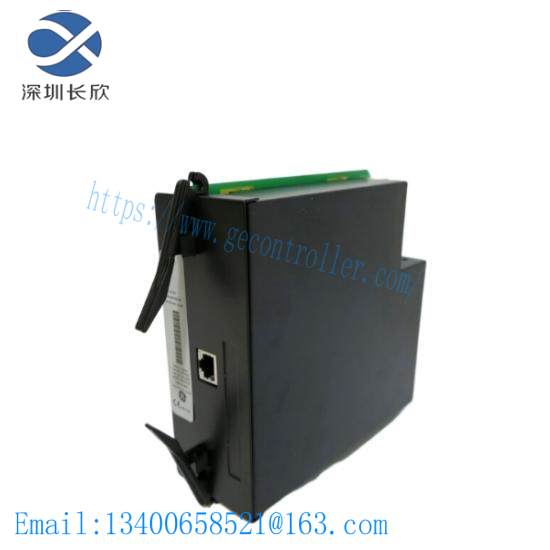

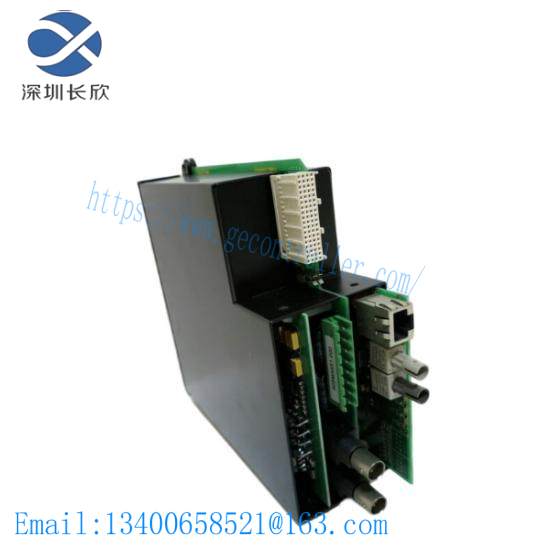

GE Multilin 745-W3-P5-G5-HI Transformer Management Relay, High Input Voltage and Advanced Protection System

In stock

The GE SR745-W3-P5-G5-HI Transformer Management Relay is a high-performance device designed for the protection and management of transformers, autotransformers, and reactors. Featuring advanced functionalities like Dynamic CT Ratio Mismatch Correction and Overexcitation Protection, it ensures optimal performance and longevity of electrical systems.

Weight:4.8kg

Voltage Input Burden:Less than 0.025 VA at 120 V

Source VT:2 to 600 kV / 60 to 120 V

# of Logic Inputs:16

Manufacturer:General Electric Multilin

Fuse Current Rating:3.15 A

Operating Temperature:-40°C to +60°C

Input Voltage:60 to 120V

Display Resolution:40 Character LCD

IRIG-B Input Impedance:70 to 100 kΩ

The GE SR745-W3-P5-G5-HI is an indispensable tool for transformer management and protection.

With its enhanced 40-character display and expanded keypad, this relay allows for seamless manual entry of setpoints, making it user-friendly and efficient.

The robust design ensures compatibility with standard 19-inch panels, and the case dimensions of 9 inches in height, 7 inches in width, and 7 ⅛ inches in depth make it compact yet durable.

Real-time alerts are provided through LEDs on the front panel, ensuring operators are promptly informed about various statuses and errors.

Designed for a wide operating temperature range from -40°C to +60°C, this relay can withstand harsh environments, ensuring reliable performance in diverse conditions.

GE SR745-W3-P5-G5-HI
