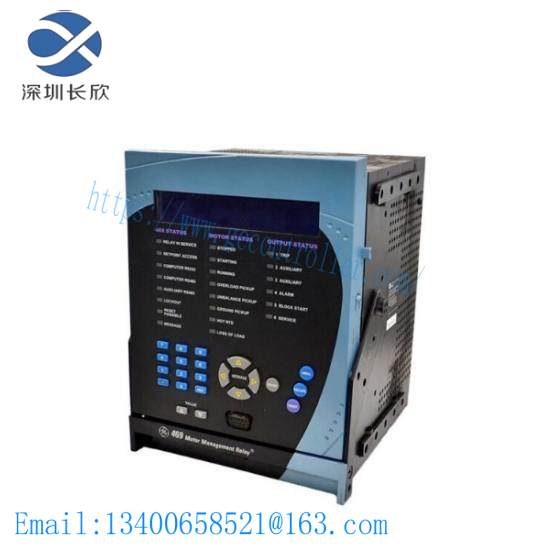

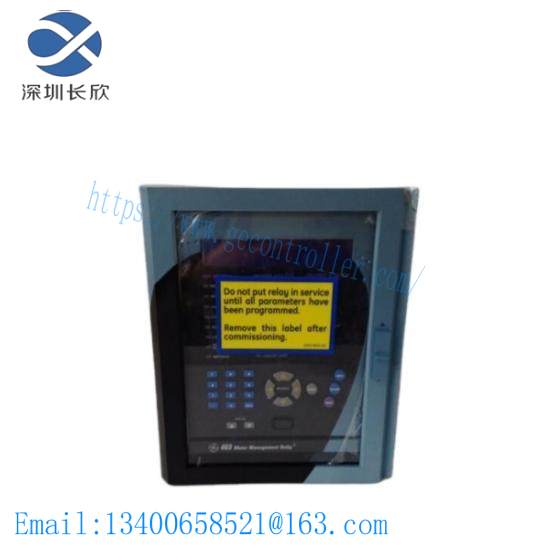

SR469-P5-HI-A20-E – GE Relay

Model Number:469-P5-HI-A20-E

Brand:General Electric

Category:Motor Management Relay

Voltage Range:90 – 300 VDC, 70 – 265 VAC

Frequency Range:48-62 Hz

Current Ratings:5 CT Secondaries

Analog Outputs:4

Digital Inputs:9 opto-isolated inputs

Operating Temperature Range:-40°C to +60°C

Storage Temperature Range:-40°C to +80°C

Phase Current Inputs:1 A phase CT secondaries

Enclosure Rating:20-X

Pollution Degree:2

Overvoltage Category:II

Insulation Voltage:300 V

    The GE SR469-P5-HI-A20-E Motor Management Relay is meticulously designed to ensure optimal performance and reliability in industrial settings. With multiple RTD inputs capable of determining the actual temperature and hottest point for the motor system, this device provides unparalleled monitoring accuracy. The RTDs are composed of 100 ohm Nickel, 120 ohm Nickel, 10 ohm Copper, and 100 ohm Platinum, ensuring precision and durability.

    This relay is equipped with four (4) 0 to 1 mA analog outputs, nine (9) opto-isolated digital inputs, and an enhanced display featuring a larger LCD. It is designed to operate within harsh environments thanks to its conformal coating, which protects against chemical exposure. The GE SR469-P5-HI-A20-E supports a wide range of voltages and frequencies, making it suitable for various applications across industries such as manufacturing, energy, and more.

    With a robust design built to withstand extreme temperatures (-40°C to +60°C operating, -40°C to +80°C storage), this relay ensures reliable operation even under demanding conditions. Its overvoltage category II and pollution degree 2 certifications further enhance its suitability for industrial environments.
