DS3800 – Board

Brand:General Electric

Model:DS3800HCMC

Sub-Model:Gas Turbine Daughter Board

Module Category:Mark IV DS3800

Connector Type:Modular Connector

Attachment Feature:Drive Attachment with Retention Levers

Number of Jumpers:14

Indicator LEDs:[“Amber”,”Red”]

Connectors:2 x 34-pin

Capacitors and Resistors:Multiple

Embedded Components:EPROM Modules

Firmware and Code Storage:Erasable Programmable Read-Only Memory

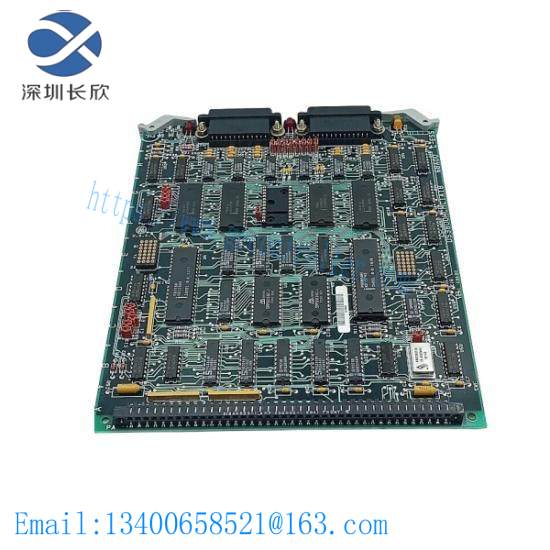

    This GE DS3800HCMC Gas Turbine Daughter Board is engineered for seamless integration into complex power generation systems, ensuring optimal turbine operation and efficiency.

    Featuring a robust modular design, this board provides secure attachment to the drive mechanism, facilitating quick installation and maintenance.

    Equipped with a comprehensive set of features including 14 jumpers and dual indicator LEDs, it enables precise configuration and real-time system status monitoring.

    Capable of operating within a wide temperature range (-40°C to 85°C), this board ensures reliability in diverse environmental conditions, making it suitable for global applications.

    The embedded EPROM modules store firmware and machine-readable code, providing the processing instructions necessary for efficient turbine control and diagnostics.
