HEIDENHAIN – HEIDENHAIN Encoder

Type:Absolute Rotary Encoder

Resolution:18000 PPR

Operating Range:-40°C to +100°C

Enclosure Type:IP65

Operating Voltage:DC 5V ±10%

Maximum Load Torque:0.1 Nm

Shaft Size:φ8 mm

Connection Type:24 Bit SSI

Material:Aluminum

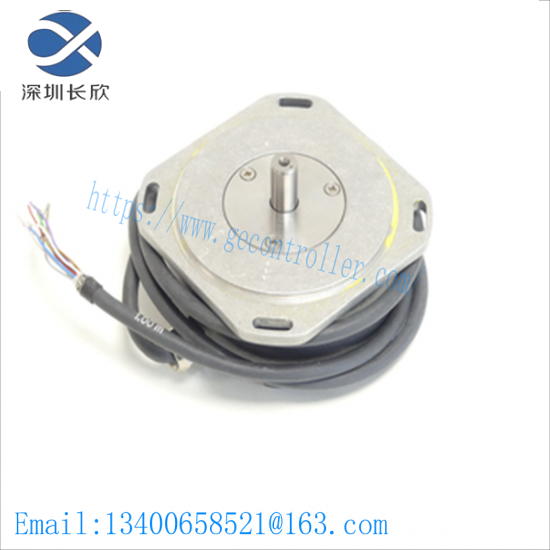

    The Heidenhain ROD 260.0001-18000 Encoder is designed for precision control in industrial automation systems, providing unmatched accuracy and reliability in demanding environments. With an operating temperature range from -20°C to +85°C, it ensures continuous performance under varying conditions.

    Featuring a resolution of 18,000 counts, this encoder delivers high-resolution positioning and speed control capabilities, making it ideal for applications requiring extreme precision, such as robotics, CNC machinery, and automation systems.

    The encoder’s digital output type allows for easy integration with modern control systems, offering a seamless connection through its 2-wire connection system. It is equipped with robust environmental resistance, rated at IP65, ensuring protection against dust and light water splashes.

    Equipped with a smooth shaft configuration, this encoder ensures smooth operation and compatibility with a wide range of mechanical setups. It supports a load capacity of up to 250 Nm, making it suitable for heavy-duty applications.

    With an operating voltage range of 10…30V DC, the encoder is versatile and can be integrated into various power supply scenarios. Its compact size of 42 mm x 42 mm and lightweight design facilitate easy installation and maintenance in tight spaces.
