Siemens

Net Weight (kg):0.745

Packaging Dimensions:13.20 x 15.20 x 13.10 cm

Manufacturer(s):SIEMENS

Model Type:SIMATIC S7-300

CPU Model Number:6ES7314-6BG03-0AB0

Net Weight (lbs):Approximately 1.64 lbs

Power Supply:Integrated 24 V DC

Work Memory:96 KB

Input/Output:24 DI/16 DO, 4 AI, 2 AO

Additional Features:1 Pt100, 4 high-speed counters (60 kHz), front connector (2x 40-pole) and Micro Memory Card required

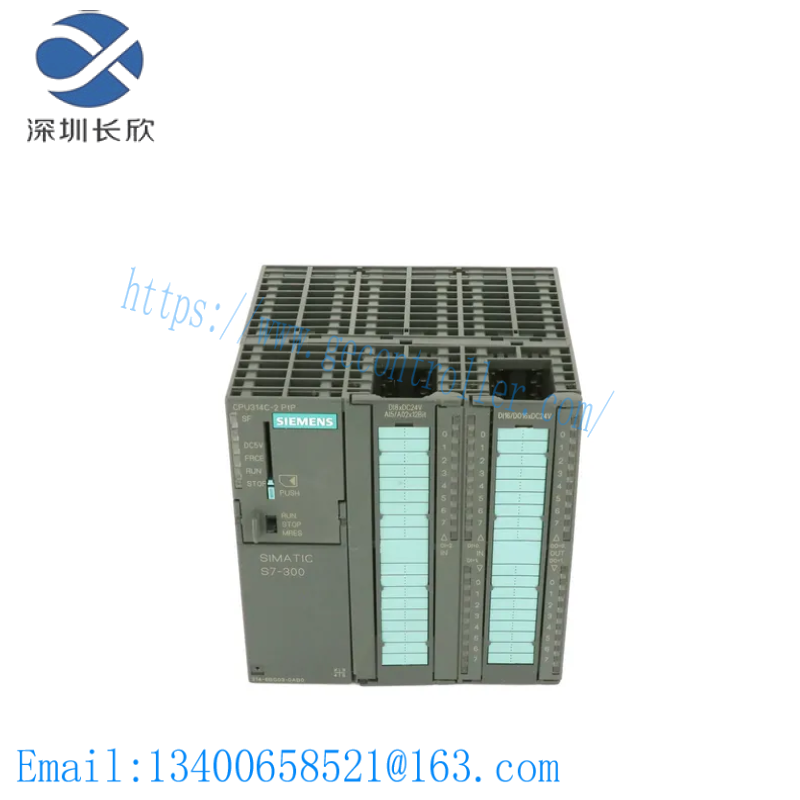

    The SIEMENS S7-300 Compact CPU with MPI, model number 6ES7314-6BG03-0AB0, is designed for seamless integration into modular control systems, ensuring efficient and reliable operation in various industrial environments.

    Equipped with a robust microprocessor, this CPU supports MPI (Multiprotocol Interface) communication, facilitating straightforward connection to other devices within the automation network. Its compact size makes it an excellent choice for space-constrained applications.

    With integrated functionality for digital inputs and outputs (DI/DO), analog inputs and outputs (AI/AO), and pulse inputs (Pt100), this CPU offers comprehensive control capabilities for a wide range of industrial processes.

    The inclusion of four high-speed counters at 60 kHz enables precise timing and control for applications requiring high-frequency events, enhancing the overall responsiveness and accuracy of the system.

    Integrated with a 24 V DC power supply, this CPU ensures stable power delivery for all onboard components, guaranteeing continuous operation without the need for external power supplies. Its large working memory of 96 KB supports complex programming and data processing requirements.

    For optimal performance and flexibility, the CPU requires a front connector compatible with a 2x 40-pole configuration and a Micro Memory Card. This modular design allows for easy expansion and customization according to specific application needs.
