ES7322 – Module

Type:Digital Output Module

Model Number:6ES7322-8BH10-0AB0

Producer:Siemens

Isolation Type:Optically Isolated

Operating Voltage DC:24V

Operating Current DC:2A

Operating Voltage AC:120-230V

Operating Current AC:5A

Relay Contacts:Yes

Number of Outputs:8

Pin Configuration:40-pin connector

Application Environment:Industrial

Certifications:CE, UL

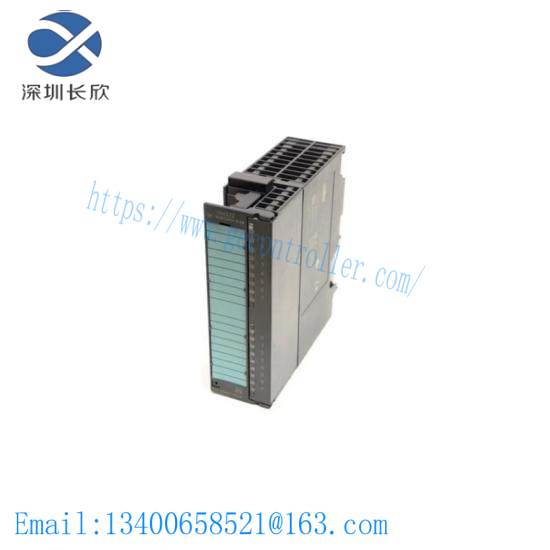

    The Siemens 6ES7322-8BH10-0AB0 Digital Output SM 322 boasts a compact design with 40-pin connectors, making it easy to integrate into existing control systems. It offers optical isolation to prevent electrical interference, ensuring high signal integrity even in challenging environments.

    Each channel is equipped with a relay contact rated for up to 5mA, allowing for efficient power control without the risk of voltage drop. This feature makes it particularly suitable for applications requiring precise current regulation.

    Designed for hazardous areas, this module complies with stringent safety standards, ensuring operational safety in potentially explosive or corrosive environments. It’s an indispensable component for industries like oil and gas, chemical processing, and manufacturing.

    With its PTB-tested diagnostic function, users can easily monitor and troubleshoot issues in real-time, enhancing system reliability and reducing downtime. The module also supports comprehensive diagnostics for signal strength and error detection, facilitating proactive maintenance.

    For optimal performance, we recommend pairing this module with compatible Siemens S7-300/400 series controllers, which provide advanced control algorithms and enhanced connectivity options. This integration ensures seamless operation within the Siemens automation portfolio, delivering exceptional efficiency and control.
